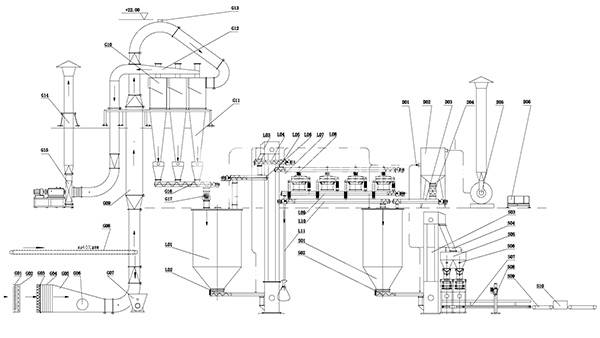

| Diagram of potato starch drying system |
|
Customization Description: the equipment can be customized according to customer requirements.
| G01 |
Louver chimney |
G08 |
Wet starch belt conveyor |
G15 |
Large induced draft fan |
L05 |
Screen upper screw conveyor |
S01 |
Finished product warehouse |
S08 |
Seam bag conveyor |
D04 |
Air shutoff |
| G02 |
Primary filter screen |
G09 |
Pulse tube (expansion tube) |
G16 |
Closed air screw conveyor 1 * 2 |
L06 |
Return screw conveyor |
S02 |
Lever screw conveyor |
S09 |
Intermediate conveyor |
D05 |
Small induced draft fan |
| G03 |
Medium efficiency filter screen |
G10 |
Volute separator |
G17 |
Air shut-off screw conveyor 1 * 2 |
L07 |
Return sliding gate valve |
S03 |
Bucket elevator |
S10 |
Metal detector |
D06 |
Compressed air tank |
| G04 |
Radiator |
G11 |
Cyclone separator 1 * 6 |
G18 |
Starch uniform bin |
L08 |
Circular vibrating screen 1 * 4 |
S04 |
Discharge pipe of bucket elevator |
S11 |
Warehousing conveyor belt |
|
|
| G05 |
Heat exchange box |
G12 |
Wet air outlet pipe |
G19 |
Lever screw conveyor |
L09 |
Under screen screw conveyor |
S05 |
Double weighing and packaging machine 1 * 2 |
D01 |
Dust inlet pipe |
|
|
| G06 |
Inspection hole |
G13 |
Explosion proof port 1 * 6 |
G20 |
Bucket elevator |
L10 |
Sieve screw conveyor |
S06 |
Internal magnetic separator 1 * 2 |
D02 |
Pulse dust collector |
|
|
| G07 |
Feeding conveyor and loudspeaker |
G14 |
Wet air discharge pipe |
G21 |
Bridge screw conveyor |
L11 |
? 150 screen upper material blanking pipe |
S07 |
Intermediate belt conveyor |
D03 |
Dust screw conveyor |
|
|
|
